How to Choose Stainless Steel Ball Valves in 2026?

Choosing stainless steel ball valves in 2026 requires more than comparing prices or polished product photos. The correct valve must match the fluid, pressure, temperature, connection type, and operating frequency. A valve used for seawater may need duplex stainless steel, while clean water service may suit 316 stainless steel. Small differences matter.

R. W. Zappe, author of Valve Selection Handbook, wrote, “Valve selection is a process of matching the valve to the application.” That principle remains practical today. Experienced engineers still inspect material certificates, pressure ratings, seat compatibility, and test records before approving a purchase. A 316 body does not guarantee every internal component is 316. Check the stem, ball, seats, seals, and fasteners.

Look closely at the installation environment. Chlorides can attack unsuitable alloys. High temperatures can weaken soft seats. Frequent cycling can expose poor stem design quickly. Ask whether the valve needs a fire-safe rating, antistatic construction, or an actuator-ready mounting pad. These details are easy to overlook.

The cheapest option may become expensive.

In 2026, buyers should also review traceability, supplier documentation, and relevant industry standards. Digital catalogs help, but they cannot replace engineering judgment. Some product pages remain vague about pressure-temperature limits. That is a warning sign, not a minor inconvenience.

This guide examines how to choose stainless steel ball valves with practical checks, technical reasoning, and room for doubt. No selection method is perfect. Real service conditions can differ from the specification sheet. Expect to verify, question, and sometimes reconsider the first choice.

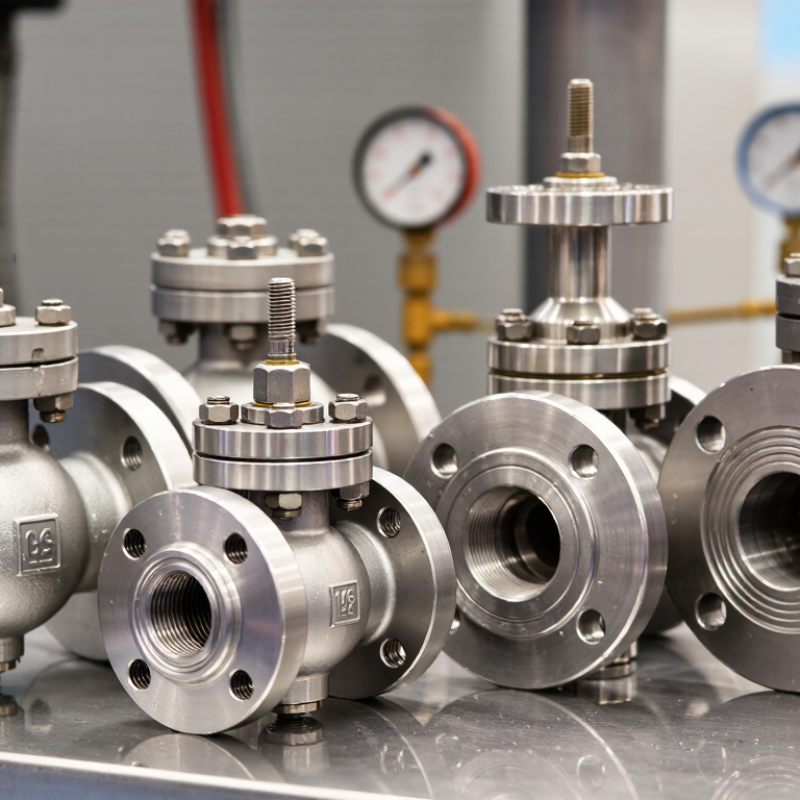

How to Choose Stainless Steel Ball Valves in 2026?
Table of Contents [Hide]
1 Stainless Steel Ball Valve Basics and Operating Principles
2 Key Specifications for Matching Valves to Service Conditions
3 How to Select Materials, Seals, Pressure Ratings, and End Connections
4 Comparing Valve Designs, Actuation Methods, and Control Requirements
5 Inspection, Installation, Maintenance, and Replacement Considerations

Stainless Steel Ball Valve Basics and Operating Principles

A stainless steel ball valve controls flow with a quarter-turn handle. Inside, a drilled metal ball rotates between two sealing seats. When the bore aligns with the pipe, fluid passes through with limited resistance. Turn the handle ninety degrees, and the solid side blocks the passage. Simple, but not careless. Ball valves work best fully open or fully closed. Partial opening can increase turbulence, seat wear, and unwanted vibration.

Choosing one requires more than checking stainless steel on the nameplate. Confirm the fluid, pressure, temperature, pipe size, and connection type. Stainless steel suits many water, air, chemical, and process applications, but compatibility depends on concentration and temperature. The body may resist corrosion while the seats or stem fail earlier. That detail is easy to miss. A full-port design reduces pressure loss, while a reduced-port design may save space or cost. Floating balls suit many general applications; trunnion-supported designs can handle larger sizes and higher operating forces.

A practical inspection should include handle movement, seat condition, thread quality, and visible casting marks. Ask for pressure and material documentation. Do not rely on appearance alone. A bright, polished surface proves little about internal performance. In maintenance work, valves often fail because the wrong seal material was selected, not because the body was weak. I would also check whether automation is planned later. Actuator mounting space, torque, and cycle frequency can change the correct valve choice. Small oversights become expensive.

Key Specifications for Matching Valves to Service Conditions

Choosing a stainless steel ball valve starts with the service, not the catalog photograph. Record fluid composition, pressure, temperature, flow rate, and cycling frequency. A valve handling clean water may fail quickly in hot chloride service. I have seen specification sheets overlook this detail. Do not repeat it. Select body and trim materials separately. 316 stainless steel often resists chlorides better than 304, but concentration and temperature still matter. For severe environments, verify corrosion data with a qualified engineer.

Match pressure and temperature ratings at the same time. Never use the maximum pressure alone; ratings usually decrease as temperature rises. Check the pressure class, allowable differential pressure, and shutoff direction. Full-port designs reduce pressure loss in pipelines, while reduced-port valves can save space and cost. That trade-off needs calculation. Compare the required flow coefficient, Cv, with the actual operating range. Oversizing can cause poor control and rapid seat wear.

Seat material must suit the medium and temperature. Soft seats provide tight shutoff, but high heat, abrasive particles, or frequent cycling may require another design. Confirm end connections, face-to-face dimensions, cavity relief, and maintenance access before ordering. For automated service, check actuator torque at breakaway and under pressure, not just nominal torque. Request test records, material certificates, and leakage results. Standards help, but paperwork is not proof of field performance. Review the selection with an experienced technician; even careful calculations can miss a cold-start condition.

How to Choose Stainless Steel Ball Valves in 2026?

Key Specifications for Matching Valves to Service Conditions
Service Condition Recommended Valve Configuration Body and Trim Materials Typical Seat Material Typical Temperature Range Pressure and Connection Guidance Selection Notes
General water, compressed air and inert gas Two-piece or three-piece, full-port, floating-ball valve ASTM A351 CF8M stainless steel body; 316 stainless steel ball and stem PTFE -20°C to approximately 180°C Choose a pressure rating suitable for the design pressure; threaded, socket-weld, or flanged ends may be used. A practical standard choice for clean, non-abrasive utilities.
Corrosive chemicals and chloride-containing media Three-piece valve with full-port bore and anti-static design 316 or 316L stainless steel wetted parts; verify compatibility of every internal component PTFE, modified PTFE, or another chemically compatible fluoropolymer Usually limited by the seat and chemical compatibility rather than the metal body Use flanged or welded connections where leakage control and system integrity are critical. 316 stainless steel is not universally resistant to all chlorides, acids, or oxidizing chemicals. Confirm concentration, temperature, and exposure time.
Steam and hot water Reduced-port or full-port valve selected for elevated-temperature duty; consider a trunnion-mounted design for larger sizes or higher torque 316 stainless steel body and trim; graphite packing may be required for high-temperature service Reinforced PTFE for moderate heat; graphite or metal-seated construction for higher temperatures when approved by the manufacturer Do not use the standard PTFE limit without checking the valve’s pressure-temperature rating Use a pressure class or PN rating that remains adequate at the operating temperature, not only at ambient temperature. Seat, stem packing, and thermal expansion can determine the actual operating limit.
High-purity water, pharmaceuticals and food processing Three-piece hygienic valve with smooth internal surfaces and drainable geometry 316L stainless steel wetted parts; hygienic surface finish as specified by the process PTFE or an approved elastomer, depending on cleaning and sterilization conditions Based on the cleaning-in-place and sterilization cycle Use sanitary clamp, orbital-weld, or other hygienic connections; avoid dead legs where possible. Specify cleanability, surface finish, elastomer compliance, and documentation requirements.
Oxygen service Cleaned and oxygen-compatible floating-ball or trunnion-mounted valve Materials must be evaluated for oxygen compatibility; stainless steel is commonly used when properly qualified Only materials approved for the oxygen concentration, pressure, and temperature Determined by the oxygen-service qualification and component materials Specify oxygen cleaning, packaging, degreasing, ignition-control, and inspection requirements. Do not install a standard industrial valve in oxygen service without documented oxygen compatibility and cleaning.
Vacuum service Full-port valve with low-leakage stem seals and suitable vacuum-rated construction 316 stainless steel body and stem; low-outgassing materials where required PTFE or another vacuum-compatible seat and seal material Based on the vacuum level, bake-out requirement, and seal material Confirm leakage rate, pressure direction, cavity venting, and whether the valve is rated for vacuum isolation. A pressure rating alone does not confirm vacuum performance.
Abrasion-prone slurries and particulate media Full-port valve with robust body design; consider a specialized lined or severe-service valve 316 stainless steel may be suitable for corrosion resistance, but trim hardness and lining are critical Reinforced PTFE, UHMW-PE, ceramic, or metal seat according to the solids and temperature Limited by the seat, lining, and solids concentration Use a bore large enough to reduce velocity and verify allowable pressure drop. Conventional soft-seated ball valves may wear quickly with abrasive solids or frequent cycling.
Flammable liquids and gases Fire-safe, anti-static, blowout-proof stem design with suitable emergency isolation capability 316 stainless steel body and trim; fire-safe construction validated to the specified standard Fire-safe soft seat or metal-seated design, depending on the application Based on the valve’s certified fire-safe and pressure-temperature limits Verify fire-safe testing, fugitive-emission performance, actuator suitability, and end-connection rating. Consider an actuated valve, fail-safe position, and emergency shutdown requirements for critical systems.
Outdoor, marine and wet environments Corrosion-resistant valve with sealed stem area and suitable external protection 316 stainless steel is generally preferred over 304 stainless steel for many chloride-bearing environments PTFE or another seat material compatible with the process fluid and climate Based on the local ambient temperature and process temperature Check atmospheric corrosion exposure, galvanic compatibility, drainage, and connection materials. 316 stainless steel can still suffer pitting or crevice corrosion in severe marine or stagnant chloride conditions.
Cryogenic liquids and very low temperatures Extended-bonnet cryogenic ball valve with low-temperature-qualified seals Low-temperature-qualified stainless steel body and trim Seat and stem seals specifically qualified for cryogenic service May extend below -50°C only when the complete valve is specifically rated for the service Confirm thermal contraction, bonnet length, pressure relief of the body cavity, and applicable cryogenic standards. A standard stainless steel ball valve is not automatically suitable for liquid nitrogen, oxygen, LNG, or other cryogenic media.
Engineering reminder: Final valve selection must be based on the complete pressure-temperature rating, media compatibility, flow velocity, cycle frequency, emissions requirements, connection standard, actuator torque, and applicable codes. Temperature ranges shown are typical guidance values, not universal limits; always verify the certified data for the exact valve construction.

How to Select Materials, Seals, Pressure Ratings, and End Connections

How to Choose Stainless Steel Ball Valves in 2026?

Material selection begins with the fluid, temperature, and installation environment. Stainless steel 316L usually resists chlorides better than 304, but it is not universal protection. Fit matters more. Check the temperature. A chemical that seems mild may attack the body, stem, or internal ball. Review the manufacturer’s material certificates and verify that wetted parts match the process. Traceability matters during audits and maintenance.

Seals deserve equal attention. PTFE suits many clean, corrosive services, but high temperatures can reduce its performance. Reinforced PTFE may improve wear resistance, while EPDM or FKM may suit different fluids. Never choose a seal by temperature alone. Confirm chemical compatibility, pressure, cycling frequency, and sanitation requirements. A valve can look perfect and still leak after a few weeks.

Pressure ratings must match actual operating conditions, not only the pipeline label. Reduce the allowable rating when temperature rises, and consider pressure surges during pump startup. Choose a full-bore design when flow loss or cleaning is critical. End connections also shape reliability. Threaded ends simplify small installations, while welded ends reduce leakage points in permanent lines. Flanged ends support easier removal, but bolt alignment and gasket selection remain important. Sanitary clamp connections need clean surfaces and correct compression. Do not guess. Recheck the torque, dimensions, and maintenance space before ordering; rushed selections often fail because one practical detail was overlooked.

Comparing Valve Designs, Actuation Methods, and Control Requirements

Choosing stainless steel ball valves in 2026 requires more than checking pressure and port size. The valve design must match the fluid, temperature, cycling frequency, and maintenance access. A full-port valve reduces pressure loss in process lines. A reduced-port design may save space and cost, but it can restrict flow. Floating-ball valves suit many moderate-pressure applications. Trunnion-mounted designs often perform better under higher pressure and larger diameters. I have found that seat material is frequently overlooked. It can determine service life when fluids contain heat, particles, or aggressive chemicals. Small details matter.

Actuation should reflect the control requirement, not personal preference. Manual handles work well for simple isolation points with occasional operation. Pneumatic actuators suit fast, repeated movement and hazardous areas where electrical equipment needs careful evaluation. Electric actuators offer precise positioning and useful feedback, especially in automated systems. However, they may need weather protection and reliable power. Control valves also require correct signal type, fail position, torque, and response speed. A normally closed or normally open action should follow the process safety assessment. Do not assume the largest actuator is the safest choice. Excess torque can damage seats and stems. My earlier selections sometimes focused too heavily on valve size, while ignoring instrument compatibility. That mistake can create delays during commissioning. Verify materials, certifications, enclosure ratings, and testing records with qualified engineers before installation.

How to Choose Stainless Steel Ball Valves in 2026?

Comparing valve designs, actuation methods, and control requirements

The screening index uses a 1–5 engineering scale, where 5 indicates stronger suitability for the stated selection criterion. Two-piece valves prioritize compactness and cost efficiency, three-piece valves provide easier maintenance, while top-entry and trunnion-mounted designs are generally better suited to demanding, automated, or higher-pressure services. Final selection should verify pressure class, temperature range, media compatibility, leakage requirements, actuator torque, and control-system feedback.

Inspection, Installation, Maintenance, and Replacement Considerations

How to Choose Stainless Steel Ball Valves in 2026?

Inspection, Installation, Maintenance, and Replacement Considerations

Choosing a stainless steel ball valve requires more than checking its pressure rating. Confirm the fluid, temperature, line size, connection type, and required shutoff class. A valve for chlorinated water may need different material control than one for dry air. Request material certificates and pressure-test records when traceability matters. Inspect the body, stem, seats, and threads for scratches, corrosion, or trapped debris. Small defects can become expensive leaks.

During installation, flush the pipe before fitting the valve. Even one metal shaving can damage a soft seat. Keep the ball fully open while tightening threaded connections, and support the pipe separately from the valve. Follow the specified torque; excessive force can distort the body or fitting. Verify flow direction where the design requires it, then perform a leak test at controlled pressure. Do not treat a successful first test as permanent proof.

Maintenance should include a visual check, operating cycle, and review of leakage history. Cycle the valve carefully, not violently. Record the date, pressure, temperature, and operating resistance. Lubrication is not always appropriate, especially for oxygen service or contamination-sensitive systems. Replace the valve when the stem, seat, body, or connection shows unsafe wear. I have seen teams replace only the handle, then miss internal damage. That shortcut deserves reconsideration. Before removal, isolate, depressurize, drain, and verify the line is safe.
